White 95% Alumina Ceramics Based Ceramics 20 KV/Mm With High Electrical Insulation And Corrosion Resistance

Brand Name : HENGYUAN

Model Number : 95% Alumina Ceramics

Certification : CE,UL

Place of Origin : WUXI JIANGSU CHINA

MOQ : 100

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 5000 PCS/WEEK

Delivery Time : 20 DAYS

Packaging Details : Carton

Material : 95% Alumina Ceramics

Color : White

Density : 3.6 g/cm³

Dielectric Strength : 20 KV/mm

OEM，ODM : Acceptable

Orgin : WUXI JIANGSU CHINA

MOQ : 100 PCS

Package : Carton

Contact Now

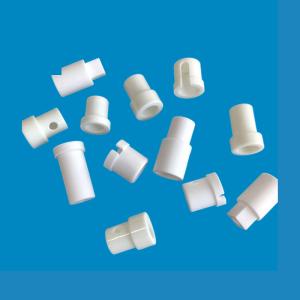

Alumina ceramics in machinery manufacturing is mainly used to make high-precision mechanical parts, such as ceramic bearings, ceramic sliders, etc., using its high hardness, high strength and low thermal expansion coefficient characteristics.

Naterial Unit

A95%

Alumina Ceramics

A97%

Alumina Ceramics

A99%

Alumina Ceramics

A99.7%

Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardulus HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
*Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10
